Battery -Verneva Medium Range – LiFEP04

22 500 kr incl VAT

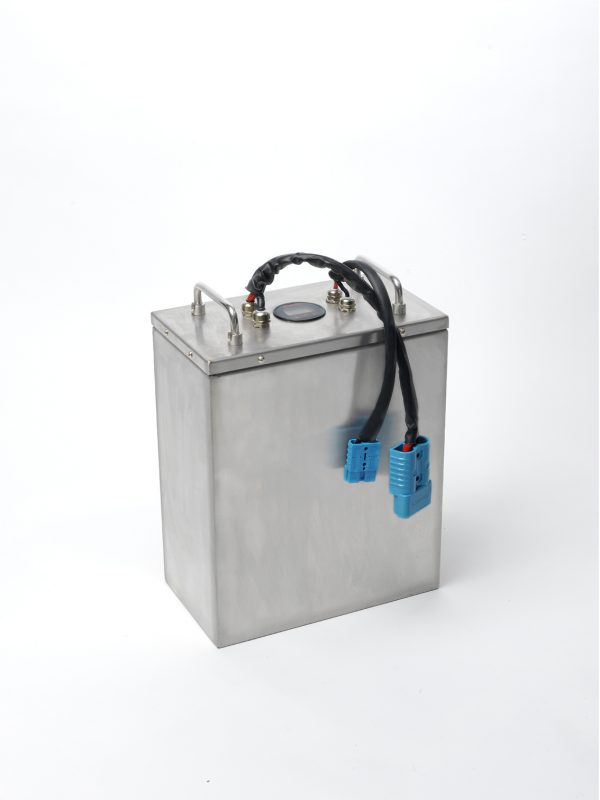

Introducing the Verneva Medium Range LiFeP04 (VE-4850) battery.

The battery is what will “fuel” your electric propulsion outboard and selecting a battery with capacity enough to utilize our amazing Current Series is just as important as having a capable outboard.

When you have decided to embark on you electric journey, you never need to go to gasoline station to refuel your outboard anymore.
You only need to recharge your batteries at home or in a docking place.

SKU: VE4850BAT Category:

Description

We choose the modern, futureproof LiFePO4 (LFP) battery type for our expandable battery modules. This means both that the materials used inside battery cell will not cause any fire or explosion and the LFP battery holds

  • Competitive prices
  • High energy density -> lower weight
  • Longer life

Each module (Battery) has its own battery management system (built-in BMS) and charger.  The VE-4850 also have its built-in LED meter showing Voltage, Current and Capacity in %.

The quality of cell is very consistent and can last more than 2000 charging cycles. Its so called C-rating (the measurement of current in which a battery is charged and discharged at) is 3 times, that means a single 48V50AH module can output 150A continuously.

So to see if your type of boat and your needs, are higher than what can be handled with one battery why you can buy one and  test the outboard motor performance and get amperage to calculate before you know the exact battery capacity you need.

For example, your trial boat testing shows you the motor current drawn from battery module is around 65A, and the reach you need to operate your boat for is around 3 hours. This means you need 65A*3H=195Ah battery capacity to meet your optimal (minimum) requirements, this tells that you have to buy 4 sets of 48V50AH (4*50Ah=200Ah) battery modules all together.

This can than be handled by parallel linking up to 4 expandable battery modules to form a larger capacity battery bank by using our Scalable Battery Hub. You can use two such hubs to link up to 8 battery modules



Additional information

Weight 27 kg
Dimensions 31 × 18 × 40 cm
Battery Type

LiFeP04

Capacity

48V 50AH

BMS

Intelligent Battery Management System

Charging Cycles

> 1000

Max Discharging

150 A

Charger (110-240 VAC)

8A

Casing

Stainless Steel
